Alex cooking best carne asada ever at diesel program graduation barbeque.Stefany cooked some delicous mexican rice and Jeff cooked up some of the best chili beans I have ever had.Thanks to everybody for helping and making it such a success hope you all have a great summer.

Fith wheel removal

Published with Blogger-droid v2.0.4

Lesson on removing and replacing the fith wheel simple process but you need a lift of sometype to get it off, not to complicated.

300 hrs shop time and computer research time spring quarter.

Total hours this spring quater were as follows 300 hrs shop time and computer research time .

Pilot bearing check

Published with Blogger-droid v2.0.4

The pilot bearing on the frieghtliner is good I checked it out for wear and it felt like it had been properly greased so there was no damage it was smooth and lubed when I reinstalled the clutch

Sheet 17 Air brakes

Iparticipated in a disassembly of one of the ZF loader axles.Stephanie and I took apart the smaller axle.We found that the planetery gears inside are held together by a ring and it was a challenge to reasembleble it but we did it. I did 14 brake jobs total on all the trucks in the shop it was quite the learning experience today i feel confident that I can use my skills to fix any truck brake by using my basic skills i learned on instalation and examination of brakes from Jeff.

24 Remove and replace deferential carrier assembly 15hrts

1. Remove and replace differential carrier assembly. (Optional) 2. Inspect and replace drive axle shafts. 3. Remove and replace wheel assembly; check rear wheel seal and axle flange gasket for leaks; perform needed action. 4. Identify causes of drive axle wheel bearing noise and check for damage; perform needed action. 5. Inspect and test drive axle temperature gauge and sending unit/sensor; determine needed action. 6. Clean, inspect, lubricate and replace wheel bearings; replace seals and wear rings; inspect and replace retaining hardware; adjust drive axle wheel bearings.

22 Inspection of clutch 15 hrs

Inspect and/or replace clutch brake assembly; inspect input shaft and bearing retainer; perform needed action. 2. Inspect and replace pilot bearing. 3. Inspect flywheel mounting area on crankshaft, rear main oil seal, and measure crankshaft end play; determine needed action. 4. Inspect flywheel, starter ring gear and measure flywheel face and pilot bore runout; determine needed action. 5. Inspect flywheel housing(s) to transmission housing/engine mating surface(s) and measure flywheel housing face and bore runout; determine needed action.

23 Removeing transmision 15 hrs

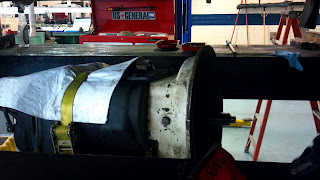

1. Remove and reinstall transmission. I worked on the frieghtliner transmission removal It was nice to have the option of the truck lift first I removed the drive line and set the lift under the tranny and tied it so it was secure.Then I took the bolts that hold the transmission on the engine.Follewed by a up down motion with the tranny lift so it would seperate from the block of the engine and slowly bring the tranny down.I think this process would be very difficult in th e field without a lift but certainly I can do it.I inspected the clutch wear and the tolerance with the dial indicayer to check for trueness and wear of the crank bearing andresults were within the .008 permited by the eaton. 2. Inspect and test function of reverse light, neutral start, and warning device circuits; determine needed action. 3. Inspect and test operation of automatic transmission electronic shift selectors, switches, displays and indicators, wiring harnesses. 4. Identify causes of driveshaft and universal joint noise and vibration problems; determine needed action. 5. Inspect, service, or replace driveshaft, slip joints, yokes, drive flanges, and universal I inspected the slip joints and yoke drive flanges for wear and loseness they all looked to be tight and secure fit and lubed. joints, driveshaft boots and seals, and retaining hardware; check phasing of all shafts. 6. Inspect driveshaft center support bearings and mounts; determine needed action.

21 Clutch problems 15hrs

1. Identify causes of clutch noise, binding, slippage, pulsation, vibration, grabbing, dragging, and chatter problems; determine needed action. 2. Inspect and adjust clutch linkage, cables, levers, brackets, bushings, pivots, springs, and clutch safety switch; check pedal height and travel; perform needed action. 3. Inspect, adjust, lubricate, or replace release (throw-out) bearing, sleeve, bushings, springs, housing, levers, release fork, fork pads, rollers, shafts, and seals. 4. Inspect, adjust, and replace two-plate clutch pressure plate, clutch discs, intermediate plate, and drive pins/lugs.

20 fith wheel 15hrs

1. R&R, disassemble at least one each 5th wheel in the shop, or document one off site. 2. Inspect, adjust, repair, or replace 5th wheel and inspect mountings.
